Overview - FarSync OEM T1U PCI / PCI -X card

The FarSync OEM T1U - 1 port WAN Universal card and software is designed to provide a high performance communications solution for companies who wish to quickly develop their own communications products without incurring the cost of having to develop and approve hardware. There is an API to permit HDLC framed and transparent bit stream operation from Linux, Windows XP, 2000 and Server 2003. Royalty free source code is provided for the executive and synchronous line drivers with sample application, test programs and utilities that allow you to get the card working straight out of the box.

Key Features

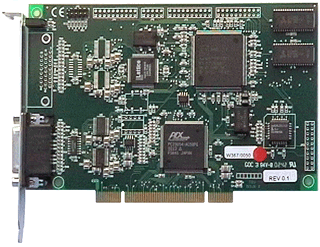

1 port WAN card for OEM development - FarSync OEM T1U

Wide speed range - up to 10 Mbits/s full duplex
Maximum total bandwidth 20 Mbits/s
X.21, V.35, RS232C, EIA530, RS449 WAN interfaces
Synchronous and Asynchronous support
1 communication port with ESD protection circuitry
Developers toolkit - utility applications, sample applications and source code
API for HDLC frame and transparent bitstream modes on Linux, Windows XP, 2000, and Server 2003
PCI and PCI-X compatible bus mastering Universal card
Compatible with 3.3 and 5.0 volt signaling
Downloadable executive and line drivers
Powered from PCs 3.3 volt supply
CE and FCC class B approval

Further Information: FarSync OEM T1U specification

Overview - FarSync OEM T2U PCI / PCI -X card

The FarSync OEM T2U - 2 port WAN Universal card and software is designed to provide a high performance communications solution for companies who wish to quickly develop their own communications products without incurring the cost of having to develop and approve hardware. There is an API to permit HDLC framed and transparent bit stream operation from Linux, Windows XP, 2000 and Server 2003. Royalty free source code is provided for the on board executive and synchronous line drivers with sample application, test programs and utilities that allow you to get the card working straight out of the box.

Key Features

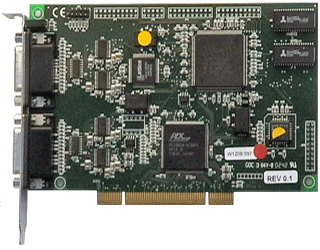

2 port WAN card for OEM development - FarSync OEM T2U

Wide speed range - up to 10 Mbits/s full duplex
Maximum total bandwidth 40 Mbits/s
X.21, V.35, RS232C, EIA530, RS449 WAN interfaces
Synchronous and Asynchronous support
Internal and external clocking
2 communications port with ESD protection circuitry
Developers toolkit - utility applications, sample applications and source code
API for HDLC frame and transparent bitstream modes on Linux, Windows XP, 2000, and Server 2003
PCI and PCI-X compatible bus mastering Universal card
Compatible with 3.3 and 5.0 volt signaling
Downloadable executive and line drivers
Powered from PCs 3.3 volt supply
CE and FCC class B approva

Further Information: FarSync OEM T2U Specification

Overview - FarSync OEM T4U PCI / PCI -X card

The FarSync OEM T4U - 4 port WAN Universal card and software is designed to provide a high performance 4 port communications solution for companies who wish to quickly develop their own communications products without incurring the cost of having to develop and approve hardware. There is an API to permit HDLC framed and transparent bit stream operation from Linux, Windows XP, 2000 and Server 2003. Royalty free source code is provided for the executive and synchronous line drivers with sample application, test programs and utilities that allow you to get the card working straight out of the box.

Key Features

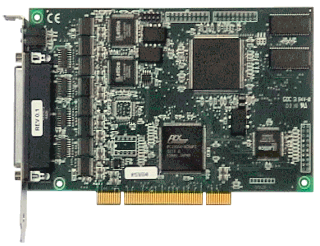

4 port PCI / PCI-X WAN card - FarSync OEM T4U

Wide speed range - up to 10 Mbits/s full duplex
Maximum total bandwidth 64 Mbits/s
X.21, V.35, RS232C, EIA530, RS449 WAN interfaces
Synchronous and Asynchronous support
Internal and external clocking
4 communication ports with ESD protection circuitry
Developers toolkit - utility applications, sample applications and source code
API for HDLC frame and transparent bitstream modes on Linux, Windows XP, 2000, and Server 2003
PCI and PCI-X compatible bus mastering Universal card
Compatible with 3.3 and 5.0 volt signaling
Downloadable executive and line drivers
Powered from PCs 3.3 volt supply
CE and FCC class B approval

Further Information: FarSync OEM T4U Specification

Overview - FarSync OEM T4E PCI / PCI -X card

The FarSync OEM T4E 4 port WAN card and software is designed to provide high performance hardware communications solutions for companies who wish to quickly develop their own communications products without incurring the cost of having to develop and approve hardware.

The T4E is a Universal PCI communications card (PCI and PCI-X compatible) with four independently configurable sync/async serial ports. Sync operation supports both bitsync (HDLC) and transparent bitstream of up to 10 Mbits/s per port with a total card bandwidth of 60 Mbits/s.

The unique feature of the T4E is the huge variety of clocking options. The clock can be:

Internally generated using a local clock generator
External from the WAN communications line
External via a special H.100 clock bus connector
Sourced on one port then routed to the others
Multiplied or divided per port to obtain the required rate
Independently configurable for each line

The product supports the standard Windows SDCI API, providing applications with direct access to the card's communications port/s for asynchronous, bit synchronous (HDLC) framing, and also transparent bitstream operation for video and voice type applications. The special clocking features are all accessible though the SDCI interface.

Support is included for the Linux Raw Sockets API that allows HDLC frames and transparent bitstream data to be sent and received. It also allows selection of the full range of clock modes. Full documentation, source code for the Linux driver and a sample application demonstrating both modes of operation is provided.

Key Features

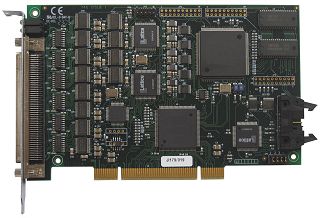

4 port PCI / PCI-X WAN card with extended clocking support - FarSync OEM T4E

Wide speed range - up to 10 Mbits/s full duplex
Maximum total bandwidth 60 Mbits/s
X.21, V.35, RS232C, EIA530, RS449 WAN interfaces
Synchronous and Asynchronous support
Huge range of clock sourcing and routing options
4 communication ports with ESD protection circuitry
Developers toolkit - utility applications, sample applications and source code
API for HDLC frame and transparent bitstream modes on Linux, Windows XP, 2000, and Server 2003
PCI and PCI-X compatible bus mastering Universal card
Compatible with 3.3 and 5.0 volt signaling
Powered from PCs 3.3 volt supply
CE and FCC class B approval

Further Information: FarSync OEM T4E Specification

Overview - FarSync OEM TE1 PCI / PCI -X card

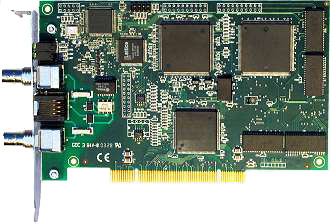

The FarSync OEM TE1 - 1 port E1 / T1 Universal card and software is designed to provide a high performance communications solution for companies who wish to quickly develop their own communications products without incurring the cost of having to develop and approve hardware. There is an API to permit HDLC framed and transparent bit stream operation from Linux, Windows XP, 2000 and Server 2003. Line drivers with sample application, test programs and utilities as supplied that allow you to get the card working straight out of the box.

Key Features

E1 and T1 interfaces - RJ48 (RJ45) and twin coax connectors
HDLC and Transparent bitstream support
Unstructured and fractional support
1 communication port with ESD protection circuitry
Developers toolkit - utility applications, sample applications and source code
API for HDLC frame and transparent bitstream modes on Linux, Windows XP, 2000, and Server 2003
PCI and PCI-X compatible bus mastering Universal card
Compatible with 3.3 and 5.0 volt signaling
Powered from PCs 3.3 volt supply
CE and FCC class B approval

Further Information: FarSync OEM TE1 specification

Overview - FarSync OEM M1P v2 PCMCIA card

The FarSync OEM M1P v2 - 1 port PCMCIA WAN card and software is designed to provide a communications solution for companies who wish to quickly develop their own communications products without incurring the cost of having to develop and approve hardware. There is an API to permit HDLC framed and transparent bit stream operation from Windows XP, 2000 and Server 2003. The product is supplied with a synchronous line driver with sample applications, test programs and utilities that allow you to get the card working straight out of the box.

Key Features

Wide speed range - up to 512Kbits/s full duplex
X.21, V.35, RS232C, EIA530, RS449 WAN Synchronous interfaces
PCMCIA card, 1 communication port
NRZ, NRZI and Manchester Encoding plus other special modes
ESD line protection circuitry
CE class B approval
Developers toolkit - utility applications, sample applications and source code
API for HDLC frame and transparent bitstream modes on Windows XP, 2000, and Server 2003

Further Information: FarSync OEM M1P specification

Product Range

Key Features

USB Products
X.21 / V.35 / RS530 - USB adapter running on Windows and Linux

PCI Products
T1 / E1 - PCI-X adapters running on Windows and Linux
SHDSL - PCI-X adapter running on Windows and Linux
X.21 / V.35 / RS530 - PCI-X adapters running on Linux
X.21 / V.35 / RS530 - PCI-X adapters running on Windows

PCMCIA Products
X.21 / V.35 / RS232C - PCMCIA adapter running on Windows

Data rates that can exceed 6000 frames per second
Cards offering 1-2 ports and 4 port options
Line speeds of up to 10 Mbits/s per port
T1, E1 (G.703 and G.704), X.21 (V.11 / RS422), V.35, RS530 (EIA530), RS232C (V.24/X21bis) and SHDSL (G.SHDSL, SDSL) interfaces
Intelligent adapters with USB, PCI, PCI-X and PCMCIA bus interfaces
Bus mastering PCI DMA interfaces
Drivers support multiple adapter and multiple processor installations
Drivers for Linux and Windows
Support for Brent X.21 secure connections

FarSync OEM PCI / PCI-X cards comparison overview of specifications
For more detailed information about the particular card, click on the product name Note: The FarSync OEM TE1 is not listed in this table as it supports a different type of network interface.
Product Name	FarSync OEM T1U	FarSync OEM T2U	FarSync OEM T4U	FarSync OEM T4E
Product Code	FS5140	FS5240	FS5440 / FS5441 (with async)	FS5444
Warranty	5 years	5 years	5 years	5 years
Hardware Features
Card Bus Type	PCI / PCI-X 32 and 64 bit bus PCI 2.2 compliant Bus Mastering	PCI / PCI-X 32 and 64 bit bus PCI 2.2 compliant Bus Mastering	PCI / PCI-X 32 and 64 bit bus PCI 2.2 compliant Bus Mastering	PCI / PCI-X 32 and 64 bit bus PCI 2.2 compliant Bus Mastering
Max Port Count	1 port	2 port	4 ports	4 ports
Multiple Cards in a PC	1	12 or more	12 or more	12 or more
Network Interfaces	RS232C, X.21, V.35, EIA530, RS449	RS232C, X.21, V.35, EIA530, RS449	RS232C, X.21, V.35, EIA530, RS449	RS232C, X.21, V.35, EIA530, RS449
Async support	yes	yes on 1 port	optional on 4 ports	yes on 4 ports
Card Size	Half card	Half card	Half card	Half card
Max Line Speed	10 Mbits/s	10 Mbits/s	10 Mbits/s	10 Mbits/s
Max Total Bandwidth	20 Mbits/s	40 Mbits/s	64 Mbits/s	60 Mbits/s
ESD Protection	Yes	Yes	Yes	Yes
Approvals	EN55022 class B, CE, FCC class B	EN55022 class B, CE, FCC class B	EN55022 class B, CE, FCC class B	EN55022 class B, CE, FCC class B
Line clocking (internal/external)	Both, internal clock range: 9600, 19200, 38400 and 76800 baud. ²	Both, all ports selectable. Internal clock range 9,600 baud to 8Mbits/s. ²	Both, all ports selectable. Internal clock range 9,600 baud to 8Mbits/s. ²	Both, all ports selectable. Internal clock range 300 baud to 8.192 Mbits/s. ⁴
Line clocking (internal/external)	² No special cables are required to use internal clocks for RS232C and X.21. For V.35 internal clocking the UX35C DCE cable should be used. Internal clocking is not supported for RS530. ³ No special cables are required to use internal clocks for RS232C and X.21. Internal clocking not supported on V.35 and RS530 connections ⁴ Uses it's own set of cables, see FarSync OEM T4E cables
Extended clock generation and routing	No	No	No	Yes, external source, clock speed multiplication & division. Clock routing, see card features
Power requirements	850mA @ +3.3 V < 5 mA @ +/-12 V (ESD suppression) 2.8 watts max	< 1.2 Amp @ +3.3V < 5 mA @ +/-12V (ESD suppression) < 4 watts max	< 1.75 Amp @ +3.3V < 10 mA @ +/-12V (ESD suppression) < 6 watts max	< 1.75 Amp @ +3.3V < 10 mA @ +/-12V (ESD suppression) < 6 watts max
Loopback test connector	1 port, supplied with card	1 port, supplied with card	4 port, supplied with card
Cables	Order separately, see the FarSync OEM T-Series product range and compatible cables table			Order separately, see FarSync OEM T4E cables
Software Features
Application Interfaces	Windows API - Enhanced SDCI Linux API - Raw Sockets
Example Applications	Linux Raw Sockets sample application; Windows SDCI sample application; Simple on card application, uses the executive and line drivers. All example applications are in C, source provided.
Manuals
Programming Manuals	FarSync OEM Linux Raw Sockets Reference Manual, FarSync Windows SDCI SDK Reference Manual, FarSync On Card Programming Reference Manual (not for T4E)
Other
Additional documentation	Specification/Programming Manuals for the major chips, Hardware Technical Reference Manual

FarSync OEM T-Series Product Range and compatible Cables
Product Name	Cable Photo	Description		Product Code
Cards, Cables and Software - FarSync OEM TE1
FarSync OEM TE1		Intelligent 1 port Universal PCI / PCI-X OEM card (E1, G.703, T1) RJ48 (RJ45) 2 metre cable is included with the product		FS5150
Cards and Software - FarSync OEM T1U and T2U
FarSync OEM T1U		Intelligent 1 port Universal PCI / PCI-X OEM card (X.21 / V.35 / RS232C / EIA530 / RS449)		FS5140
FarSync OEM T2U		Intelligent 2 port Universal PCI / PCI-X OEM card (X.21 / V.35 / RS232C / EIA530 / RS449)		FS5240
Cables for the FarSync OEM T1U and T2U
UCR1		Single RS232C (V.24, X.21bis) cable, 1.5 metres, see pinouts		FS6061
UCX1		Single X.21 (V.11, RS422) cable, 1.5 metres, see pinouts		FS6062
UCV1		Single V.35 cable, 1.5 metres, see pinouts		FS6063
U530		Single RS530 (EIA-530) cable, 1.5 metres, see pinouts		FS6064
UX35C		Single V.35 DCE cable where the DCE generates clocks, female connector, 1.5 metres.		FS6095
Cards and Software - FarSync OEM T4U
FarSync OEM T4U		Intelligent 4 port PCI / PCI-X Universal OEM card (X.21 / V.35 / RS232C / EIA530 / RS449)		FS5440
Cables for the FarSync OEM T4U
MCX4		Quad X.21 (V.11) cable with male 15 pin D type connectors, 1.5 metres, see pinouts		FS6041
MCV4		Quad V.35 cable with standard MRAC-34 (brick) male connectors, 1.5 metres, see pinouts		FS6042
MCR4		Quad RS232C (V.24) cable with male 25 pin D type connectors, 1.5 metres, see pinouts		FS6043
A MTU4 conversion cable is available that allows cables listed above for the FarSync T1U and T2U to also be used
MTU4		Quad port conversion cable 0.5 metres, allows UCR1, UCX1, UCV1, UX35C and U530 cables to be used		FS6074
Special Purpose Cables for all T-Series cards and M-series cards
Null-MX		X.21 double shielded crossover cable, 15 pin D type female connectors, 0.5 metres. Suitable for FarSync T-Series cards, see pinouts		FS6090
X21-EXT		X.21 double shielded 15 metre extension cable, 15 pin D type female to 15 pin D type male connector		FS6091
Null-MR3		V.24 (RS232C) double shielded crossover cable, 25 pin D type female connectors, 0.5 metres. Suitable for FarSync T-Series cards, see pinouts		FS6092
X21-449-INT		X21-449-INT X.21 to RS449 - conversion cable for use when the FarSync adapter generates the clock (internal clocking), 0.5 metres, see pinouts		FS6093
X21-449-EXT		X21-449-EXT X.21 to RS449 - conversion cable for use when the clock is externally generated (DCE Clock), 0.5 metres, see pinouts		FS6094
