FarSync WAN T-Series cards - X.21 / V.35 / RS530 cards for Linux

FarSync WAN X.21 / V.35 universal PCI / PCI-X intelligent cards provide versatile high performance synchronous connectivity to the Internet, satellite connections or to corporate networks over leased lines

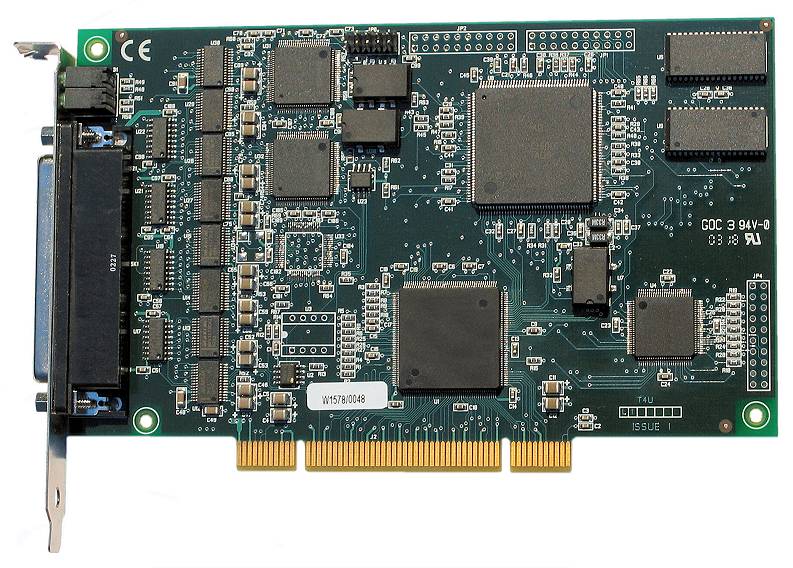

FarSync WAN T4U  - 4 port X.21 / V.35 adapter shown. Click for a larger image
The FarSync WAN T4U card from the range
available RoHS compliant
The FarSync WAN T-Series product datasheet for Linux in Acrobat PDF format may be downloaded here.
FarSync WAN X.21/V.35 PCI-X Card Product DatasheetGet Reader


The versatile intelligent FarSync WAN T-Series cards provide up to 10 Mbits/s per port WAN solutions for your X.21, V.35 and RS530 connectivity requirements. Whether you are connecting to the Internet, satellite links, private networks using TCP/IP or connecting sites using leased lines, FarSync cards provide the connectivity solution, replacing standalone routers and firewalls.

The cards install seamlessly under Linux kernel series 2.4 and 2.6 on both single and multiprocessor 32 and 64 bit systems. The drivers are included as standard in the kernel. Distributions by Redhat, SuSE, Slackware, Mandriva, Debian, Ubuntu, Fedora and more are supported.

The link level protocol can be PPP, Cisco HDLC or Frame Relay. Each serial port provides a standard point-to-point network interface controllable with all the standard Linux networking tools. Multiple cards can be installed to create a very low cost high speed Wide Area Network (WAN) hub.

PC connections to secure BRENT units are supported using X.21.

T1 and E1 (G.703 and G.704) connections are supported using the FarSync WAN TE1 - E1 / T1 card.

See also the support for the adapters under Windows XP, 2000 and Server 2003

Typical Applications

The FarSync WAN T-Series X21 / V35 adapters are suitable for connection to TCP/IP networks and HDLC lines. Typical applications include:

  • High speed Internet access
  • Frame Relay Internet access
  • Remote office access over leased lines
  • PC-based multi-port wide area network hub (Routers and Firewalls)
  • Satellite multicasting
  • Video conferencing

High Performance and Flexibility

The T-Series intelligent adapters have been designed for high performance and flexibility. The cards are driven by a AMD processors with 1 Mbyte of on board zero wait state SRAM. The PCI Bus mastering DMA interface on the FarSync T1U, T2U and T4U provides a very high performance interface to the card whilst minimising PCI and PC CPU loads.

PC/Server PCI/PCI-X Bus Compatibility

The FarSync WAN TU1, T2U and T4U are PCI version 2.2 compliant and PCI-X compatible, this Universal PCI adapter can operate in PCs using either 3.3 volt or 5 volt signaling. The card is suitable for PCs with both 32 bit bus and 64 bit bus configurations. The power for the card is taken from the 3.3 volt supply rail.

Multiple Cards

A large number of ports can be supported by the installation of multiple FarSync cards in a PC. The T1U, T2U and T4U cards can be intermixed. Rack mounted Servers can support 12 or more cards (48+ ports) utilising more than one PCI bus, the card limit is only dependent on the resources available in the host server.

Application Development

Where an Application is required to interface to API supporting HDLC or transparent bit stream formats the FarSync OEM range of cards should be used.

Installation and Configuration

A simple installation procedure will make the device driver available via the standard kernel configuration mechanism. The driver may be either permanently linked to the kernel or used as a dynamically loadable module.

A configuration tool is provided to set line speed, interface and the protocol, after which the ports may be configured with standard networking tools. Examples and default configurations are provided with the on-line documentation.

For kernel versions 2.2.21 and 2.4.9 and above the drivers are included as standard.

Port Monitoring

A daemon is included that allows the signals on any or all ports to be automatically monitored.  The network interface associated with a specific port can then be brought up or down to reflect the line state.  This allows routing tables to be dynamically recalculated to reflect destinations actually available.


The cable and connector configurations for each card type are described here.  The FarSync WAN T-Series product range table lists the cables available for each card type.  Crossover cables, sometimes referred to as null modem cables, are also listed.

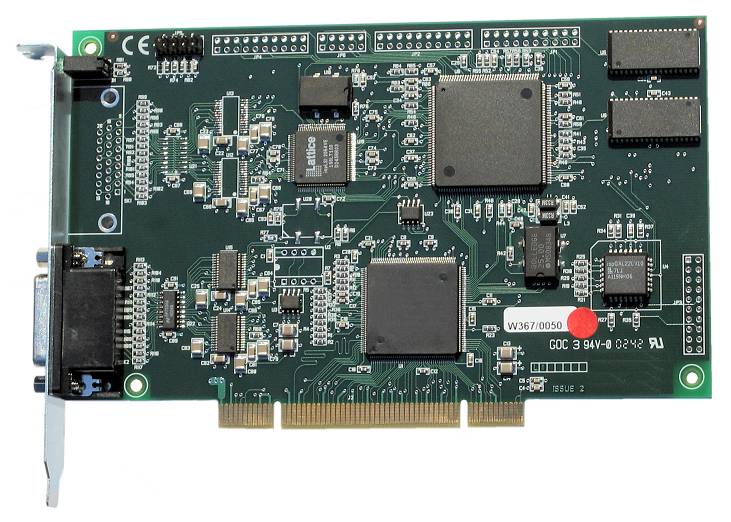

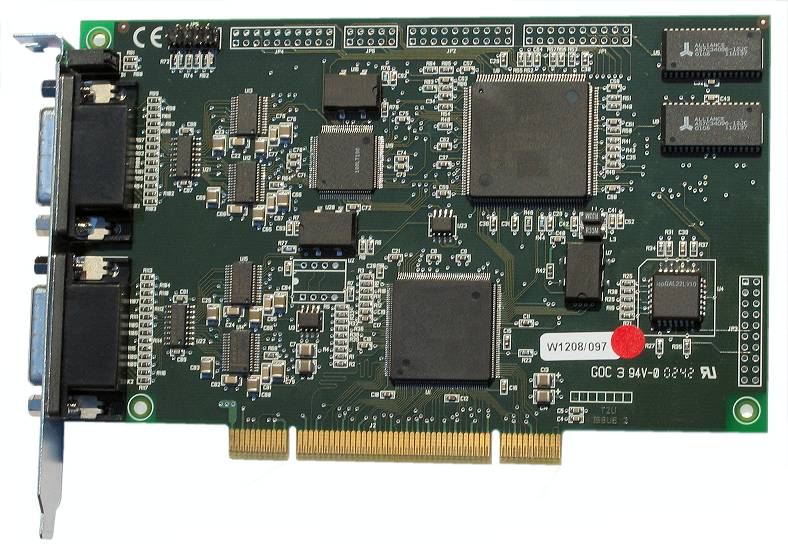

FarSync WAN T1U and FarSync WAN T2U

These one and two line cards have separate high-density D type connector for each port on the card. Cables supporting X.21 (V.11 / RS422), V.35, RS530 (EIA530), and RS232C (V.24 / X.21bis) are available plus RS449 via X.21 conversion cables.

FarSync WAN T4U

The four port cards use a single large high-density D type connector on the card with all four lines available though this connector. The quad port cables splits out the four network interfaces into separate network connectors. Cables supporting X.21 (V.11 / RS422), V.35, RS530 (EIA530), and RS232C (V.24 / X.21bis) are available plus RS449 via X.21 conversion cables.

Product Packaging

The product includes the communications card, driver software (with source), utilities and documentation supplied on CD-ROM. The cables are ordered separately see FarSync WAN cables for details.


Hardware Technical Specifications
Product Name
FarSync WAN T1U
FarSync WAN T2U
FarSync WAN T4U
Product Code
5 years
5 years
5 years
Port Count
1 port
2 ports
4 ports
Available RoHS early 2007
Available RoHS compliant
Available RoHS compliant
Hardware Features
Card type /
PCI specification
AMD Processor with 1 Mbyte zero wait state SRAM,
Intelligent Universal bus mastering PCI card,
Short card (height 107mm, length 167mm),
PCI-X compatible,
PCI v2.2 compliant,

Supports 3.3 & 5 volt signaling,
Suitable for 32 and 64 bit PCI bus slots
Network connectors

X.21 (V.11, RS422) - 15 pin male D type,
V.35 - MRAC-34 male 'brick' type ,
RS232C (V.24, X.21bis) - 25 pin male D type,
RS530 - 25 pin male D type,
RS449 can be supported through converter cables
Note: The FarSync WAN TE1 card provides E1 and T1 (G.703 and G.704) connections

Link speed range
RS232C: up to 128 Kbits/s
X21, V35, RS530: up to 10 Mbits/s
ESD protection
Yes, Littelfuse high speed ESD and over-voltage protection
Multiple cards in a PC
Yes,  4 or more
Yes,  4 or more
Yes,  4 or more
LED line status indicators
1 line status
2 line status
4 line status
EN55022 class B, CE, FCC class B, Designed for Windows XP
EN55022 class B, CE, FCC class B, Designed for Windows XP
EN55022 class B, CE, FCC class B
Designed for Windows XP
Power requirements
850mA @ +3.3 V
< 5 mA @ +/-12 V
(ESD suppression)
2.8 watts max
< 1.2 Amp @ +3.3V
< 5 mA @ +/-12V
(ESD suppression)
< 4 watts max
< 1.75 Amp @ +3.3V
< 10 mA @ +/-12V
(ESD suppression)
< 6 watts max
265,965 hours 1
233,833 hours 1
187,427 hours 1
1 Bellcore Method 1 Case 3, 40 deg.C ambient, 15 deg.C case temperature rise above ambient
Line clocking
External only
Both, all ports selectable.
Internal clock range
9,600 baud to 8Mbits/s. 2
Both, all ports selectable.
Internal clock range 9,600 baud to 8Mbits/s. 2

2 No special cables are required to use internal clocks for RS232C and X.21. For V.35 internal clock generation the UX35C DCE cable should be used. Internal clocking is not supported for RS530.

Cable type compatibility
Cables are ordered separately see the FarSync WAN T-Series product range and compatible cables table lists the cables available by card type
RoHS Compliance

Software Technical Specifications
Standard interfaces
Configurable and controllable with all standard networking tools.
Multiple cards
Yes, typically 4 per PC, only limited by PC resources, 1, 2 and 4 port cards be mixed. Large numbers of cards can be supported in certain rack mount Servers
TCP/IP, PPP, Cisco HDLC, HDLC (LAPB) and Frame Relay
Port monitoring Daemon - Monitors signals and configures the network interfaces
Full installation and configuration instructions provided on-line
Applications tested and supported
Microsoft's Netmeeting
FarSite's FarSync TCP-X25 GP Gateway, FarSync TCP-X25 POS Gateway and FarSync TCP-X25 SMS Router
On-line manual
Full installation and configuration instructions included
Operating systems supported
32 and 64 bit Linux distributions by Redhat, SuSE, Slackware, Mandriva, Debian, Ubuntu, Fedora and more
Drivers for kernel series 2.4 and 2.6

See also Windows XP, Windows 2000 and Windows Server 2003
