FarSync WAN Communication Adapters

X.21, V.35, RS530, E1, T1, SHDSL synchronous USB, PCI / PCI-X and PCMCIA adapters for PCs and Servers running Linux, Windows Vista, XP, 2000 and Server 2003

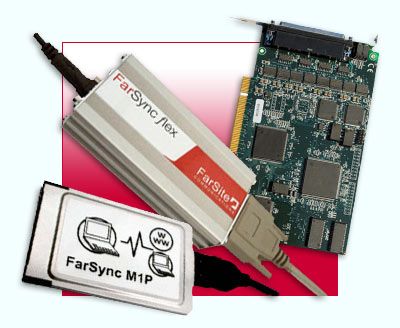

FarSync WAN , FarSync Flex , FarSync WAN M1P

Overview:

PCI: The versatile FarSync WAN T-Series product range provides E1, T1, X.21, RS530, V.35 and SHDSL WAN solutions of up to 10 Mbits/s speeds. Whether you are connecting to the Internet, a satellite link, a private network using TCP/IP, Frame Relay or inter-connecting sites using leased lines, FarSync adapters provide the connectivity solution. The cards install seamlessly under Linux, Windows 2000, Windows Server 2003 and Windows XP.
PC connections to secure BRENT units are supported using X.21.

Multiple adapters are supported, providing a good communications solution for construction of a very low cost high speed Wide Area Network (WAN) Hub.



USB: The FarSync Flex provides X.21, V.35, RS530, RS232C and other synchronous connections from a USB port. Whether you are connecting to the Internet, a satellite link, a private network using TCP/IP, Frame Relay or inter-connecting sites using leased lines. The adapters installs seamlessly under Linux, Windows XP, Vista, Windows 2000 and Windows Server 2003.
PC connections to secure BRENT units are supported using X.21.


PCMCIA: The FarSync WAN M1P v2 PCMCIA adapter provides RS232C, X.21, RS530 and V.35 network connections for speeds up to 512 Kbits/s. The card is suitable for connection to the Internet, satellite links and private networks using TCP/IP. The adapter can be installed on Windows 2000 or Windows XP.
PC connections to secure BRENT units are supported using X.21.





Product Range   Key Features

USB Products
X.21 / V.35 / RS530 - USB adapter running on Windows and Linux

PCI Products
T1 / E1 - PCI-X adapters running on Windows and Linux
SHDSL - PCI-X adapter running on Windows and Linux
X.21 / V.35 / RS530 - PCI-X adapters running on Linux
X.21 / V.35 / RS530 - PCI-X adapters running on Windows

PCMCIA Products
X.21 / V.35 / RS232C - PCMCIA adapter running on Windows



Data rates that can exceed 6000 frames per second
Cards offering 1-2 ports and 4 port options
Line speeds of up to 10 Mbits/s per port
T1, E1 (G.703 and G.704), X.21 (V.11 / RS422), V.35, RS530 (EIA530), RS232C (V.24/X21bis) and SHDSL (G.SHDSL, SDSL) interfaces
Intelligent adapters with USB, PCI, PCI-X and PCMCIA bus interfaces
 Bus mastering PCI DMA interfaces
Drivers support multiple adapter and multiple processor installations
Drivers for Linux and Windows
Support for Brent X.21 secure connections


FarSync WAN Product Range
Product Name Photo Description Code
FarSync WAN TE1 Intelligent 1 port universal PCI / PCI-X card (T1 & E1 - G.703 & G.704 - RJ48C (RJ45) and twin coax) supplied with a RJ48C cable and software drivers for Linux and Windows. FS8150
FarSync DSL-S1 Intelligent 1 port universal PCI / PCI-X card of SHDSL (SDSL, G.SHDSL) supplied with a RJ11 phone connection cable and software drivers for Linux and Windows. FS8160
FarSync Flex


 Intelligent 1 port universal USB adapter (X.21 / V.35 / RS530 / RS232C) supplied with software drivers for Linux, Windows XP, Vista, Windows 2000 and Windows Server 2003 FS4100
Cables for the FarSync Flex
KCR1 Single combined RS232C (V.24, X.21bis) and RS530 (EIA-530) cable, 1.5 metres FS6011
UCX1 Single X.21 (V.11, RS422) cable, 1.5 metres, see pinouts FS6062
UCV1 Single V.35 cable, 1.5 metres, see pinouts FS6063
KC449 Cable - RS449, 1.5 metres FS6019
Cards and Software - FarSync WAN T1U and T2U
FarSync WAN T1U Intelligent 1 port universal PCI / PCI-X card (X.21 / V.35 / RS530 / RS232C) supplied with software drivers for Linux, Windows 2000, Server 2003 and XP FS8141
FarSync WAN T2U Intelligent 2 port universal PCI / PCI-X card (X.21 / V.35 / RS530 / RS232C) supplied with software drivers for Linux, Windows 2000, Server 2003 and XP FS8241
Cables for the FarSync WAN T1U and T2U
UCR1 UCR1 Single RS232C (V.24, X.21bis) cable, 1.5 metres, see pinouts FS6061
UCX1 UCX1 Single X.21 (V.11, RS422) cable, 1.5 metres, see pinouts FS6062
UCV1 UCV1 Single V.35 cable, 1.5 metres, see pinouts FS6063
U530 U530 Single RS530 (EIA-530) cable, 1.5 metres, see pinouts FS6064
UX35C UX35C Single V.35 DCE cable where the DCE generates clocks, female connector, 1.5 metres. FS6095
Cards and Software - FarSync WAN T4U
FarSync WAN T4U FarSync WAN T4U Intelligent 4 port universal PCI / PCI-X card (X.21 / V.35 / RS530 / RS232C) supplied with software drivers for Linux, Windows 2000, Server 2003 and XP FS8441
Cables for the FarSync WAN T4U
MCX4 MCX4 Quad X.21 (V.11) cable with male 15 pin D type connectors, 1.5 metres, see pinouts FS6041
MCV4 Quad V.35 cable with standard MRAC-34 (brick) male connectors, 1.5 metres, see pinouts FS6042
MCR4 MCR4 Quad RS232C (V.24) cable with male 25 pin D type connectors, 1.5 metres, see pinouts FS6043
A MTU4 conversion cable is available that allows all cables listed for the FarSync T1U and T2U to also be used
MTU4 MTU4 Quad port conversion cable 0.5 metres, allows UCR1, UCX1, UCV1, UX35C and U530 cables to be used FS6074
Cards and Software - FarSync WAN M1P v2
FarSync WAN M1P v2 FarSync WAN M1P v2 1 port universal PCMCIA card (X.21 / V.35 / RS232C) supplied with software drivers for Windows 2000 and XP FS8133
Cables for the FarSync WAN M1P v2
QCR1 PCR1 RS232C (V.24) cable with DB-25M connector, 1.5 metres FS6085
QCX1 PCX1 X.21 (V.11) cable with DB-15M connector, 1.5 metres FS6086
QCV1 PCV1 V.35 cable with standard MRAC-34 (brick) male connector, 1.5 metres FS6087
Q530 P530 RS530 (EIA-530) cable, DB-25M connector, 1.5 metres FS6088
Special Purpose Cables
Null-MX Null-MX X.21 double shielded crossover cable, 15 pin D type female connectors, 0.5 metres.
Suitable for FarSync T-Series cards, see pinouts		 FS6090
X21-EXT X.21 double shielded 15 metre extension cable, 15 pin D type female to 15 pin D type male connector FS6091
Null-MR3 Null-MR3 V.24 (RS232C) double shielded crossover cable, 25 pin D type female connectors, 0.5 metres.
Suitable for FarSync T-Series cards, see pinouts		 FS6092
X21-449-INT X21-449-INT X.21 to RS449 - conversion cable for use when the FarSync adapter generates the clock (internal clocking), 0.5 metres, see pinouts FS6093
X21-449-EXT X-21-499EXT X21-449-EXT X.21 to RS449 - conversion cable for use when the clock is externally generated (DCE Clock), 0.5 metres, see pinouts FS6094
